Product Overview

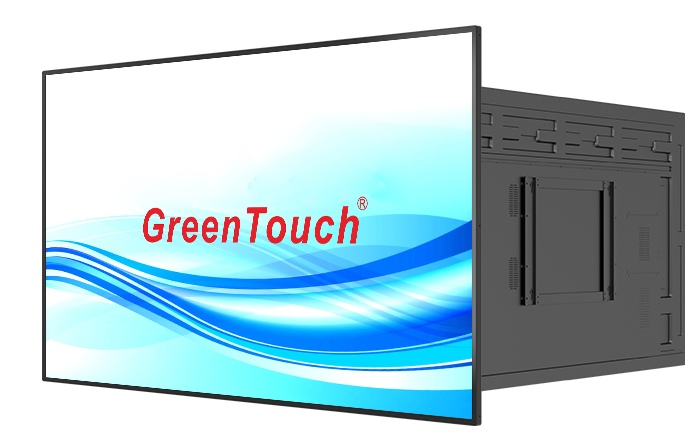

The core of a 32-inch wall-mounted industrial touch monitor is an excellent human-machine interface terminal. GreenTouch's 6C-C series large-size high-definition and ultra-high-definition industrial touch monitors solve the "last mile" digitization problem in industrial environments—using touch and data to make equipment operation intuitive and controllable.
Product Features
● Resolution: UHD 4K,Full HD 1920x1080
● Display Colors:16.7M- 1.07B,90%NTSC
● Contrast ratio:4500:1,deep and clear
● Touch Technology:Capacitive 10-Points Touch
● HDR, with distinct image layers
● Surface treatment support Anti-Glare
Product Performance

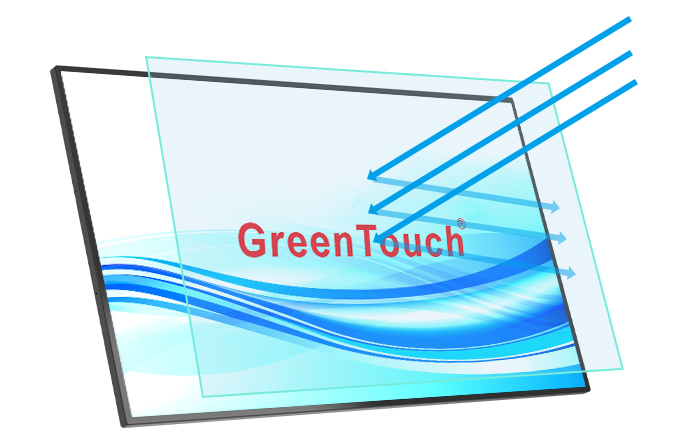

6C-C touch monitor adopt thin bezel design,optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. TFT LCD LED backlight, the display color is 16.7 M or 1.07B 90%NTSC, and the video image is very clear and natural; the appearance of the body is beautiful and fashionable.In normal operation. Under the condition of use, it can reach a long service life of 50,000 hours, and can work 7*24 hours without interruptio.
Product Installation

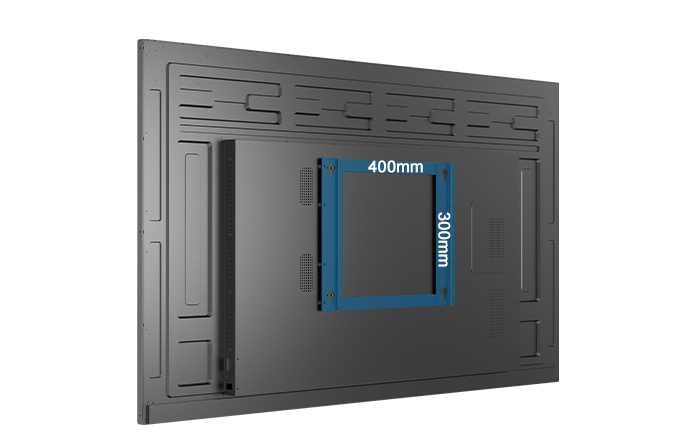

The 6C series touch monitor features four 200mm x 200mm mounting holes on the back cover, plus a wall mount bracket. Tightening the screws and plastic expansion tubes allows the monitor to be mounted vertically against the wall. （43”，50”，55”，65”：400mm x300mm）
Customization
1.Screen customization
→Surface treatment (AG/AF/AR), size, brightness (300-1000cd/m²) customization
2.Appearance customization
→LOGO, interface (VGA, HDMI, DVI, DP, USB, etc.), Packaging and Casing other appearance customization
3.Special environment customization
→ Installation method, high and low temperature environment, interference environment, other environment customization

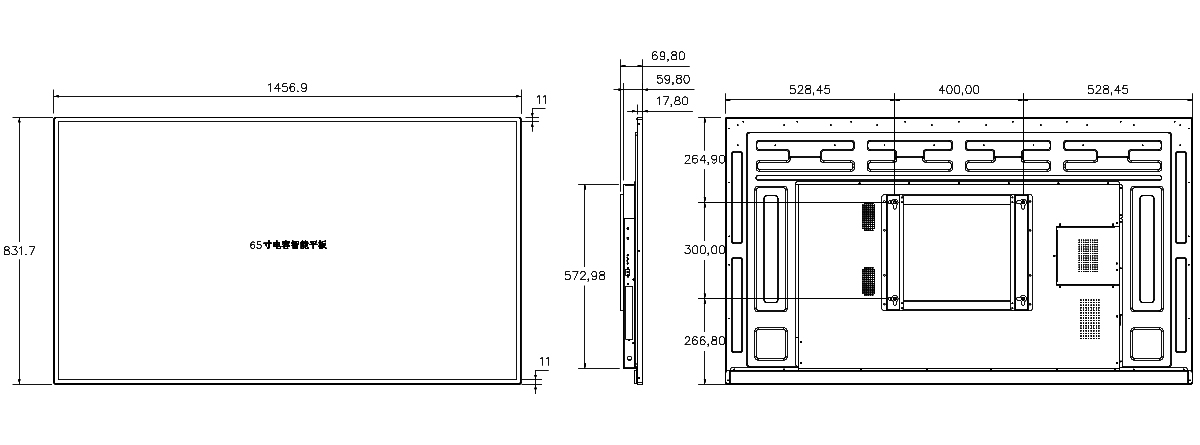

Drawing Show
GT-TM2383E-Model
About Display Ports
1.VGA+DVA+HDMI 2.VGA+HDMI+DP
Application Scenario
Product Parameters
Product Name： | Panel Mount Touch Monitor(3E series) | Type: | GT-TM2383E |
Regular Sizes： | 10.1",10.4",12.1",13.3",15",15.6",17",18.5",19",21.5",23.6",23.8" | Display Type/Colors: | Active Matrix TFT LCD, LED Backlight,16.7M |
View Angle (Center): | 10.1"/13.3"/15"(170°/170°);10.4"(160°/160°);12.1"(176°/176°);15.6"/18.5"/21.5"/23.6"/23.8"(178°/178°);17"/19"(170°/160°) | ||
Case/Frame Color: | Black | Input Video Formats: | VGA,DVI,HDMI,DP (Optional ) |
Touch Technology: | projected capacitive | Touch Points： | 10 Points |
Touch chip: | weida | Touch Supply Voltage: | 5V |
Touch Interface： | USB | Touch Support System: | Windows,Android,Linux |
Power: | External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3 mm); | ||
Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) | |||
Operating Temperature: | -20°C to 70°C(10.1"/12.1"/21.5");-10°C to 60°C (10.4"); -10°C to 70°C (15"); 0°C to 50°C(13.3"/15.6"/17"/18.5"/19" /21.5"/ 23.6"/ 23.8") | Storage Temperature： | -30°C to 80°C (10.1"/12.1"/15"); -20°C to 70°C (10.4");-20°C to 60°C (13.3"/15.6"/17"/ 18.5"/19"/ 21.5"/23.6"/23.8") |
Operating Humidity: | 20% to 80% (No Condensation) | Storage Humidity: | 10% to 90% (Non-condensing) |
Mounting Options: | 75x100mm VESA;Fixed buckle | Performance: | IP65(front)/IK06(front) |
Certificates： | RoHS,FCC,CE,CB,HDMI Testing | Warranty: | 1 Year |
