Product Overview
The core of a 32-inch wall-mounted industrial touch monitor is an excellent human-machine interface terminal. GreenTouch's 6C-C series large-size high-definition and ultra-high-definition industrial touch monitors solve the "last mile" digitization problem in industrial environments—using touch and data to make equipment operation intuitive and controllable.
Product Features
● Resolution: UHD 4K,Full HD 1920x1080
● Display Colors:16.7M- 1.07B,90%NTSC
● Contrast ratio:4500:1,deep and clear
● Touch Technology:Capacitive 10-Points Touch
● HDR, with distinct image layers
● Surface treatment support Anti-Glare
Product Performance
6C-C touch monitor adopt thin bezel design,optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. TFT LCD LED backlight, the display color is 16.7 M or 1.07B 90%NTSC, and the video image is very clear and natural; the appearance of the body is beautiful and fashionable.In normal operation. Under the condition of use, it can reach a long service life of 50,000 hours, and can work 7*24 hours without interruptio.

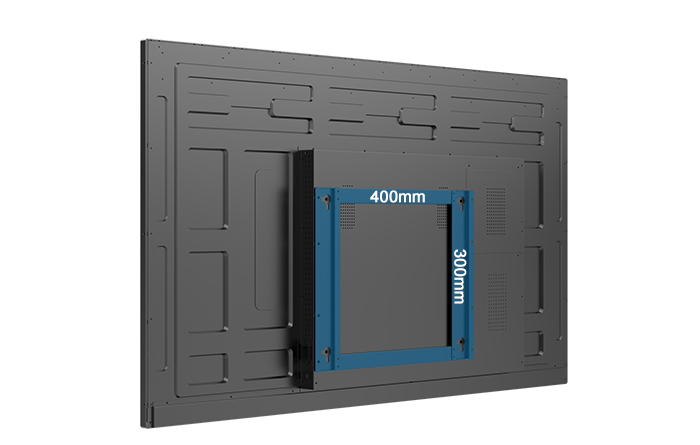

Product Installation
The 6C series touch monitor features four 200mm x 200mm mounting holes on the back cover, plus a wall mount bracket. Tightening the screws and plastic expansion tubes allows the monitor to be mounted vertically against the wall. （43”，50”，55”，65”：400mm x300mm）
Customization
1.Screen customization
→Surface treatment (AG/AF/AR), size, brightness (300-1000cd/m²) customization
2.Appearance customization
→LOGO, interface (VGA, HDMI, DVI, DP, USB, etc.), Packaging and Casing other appearance customization
3.Special environment customization
→ Installation method, high and low temperature environment, interference environment, other environment customization

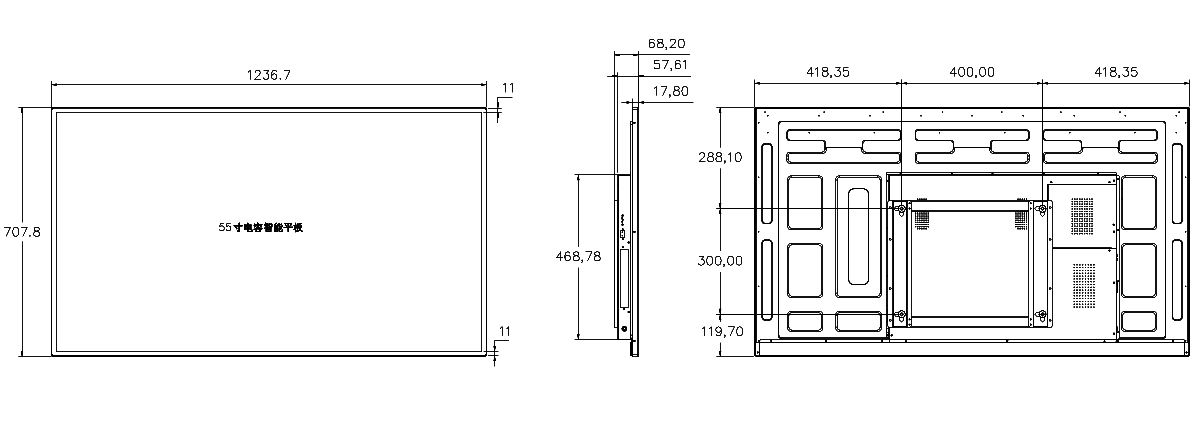

Drawing Show
GT-TM5506C-C-Model
About Display Ports
1.HDMI+HDMI+DP 2.HDMI+HDMI+DP
Application Scenario
Product Parameters
Product Name： | Wall-mounted Touch Monitor(6C-C series) | Type: | GT-TM5506C-C |
Regular Sizes： | 32",43",50",55",65" | Display Type/Colors: | Active Matrix TFT LCD, LED Backlight,16.7M |
View Angle (Center): | L/R:89°/89°;U/D:89°/89° | ||
Case/Frame Color: | Black | Input Video Formats: | HDMI2.0,HDMI1.4,DP |
Touch Technology: | projected capacitive | Touch Points： | 10 Points |
Touch chip: | weida | Touch Supply Voltage: | 5V |
Touch Interface： | USB | Touch Support System: | Windows,Android,Linux |
Power: | External AC, input voltage-AC: 100-240VAC 50HZ-60HZ; input power connector specification (on the all-in-one machine)-type: pin suffix socket | ||
Operating Temperature: | 0°C to 50°C | Storage Temperature： | -20°C to 60°C |
Operating Humidity: | 20% to 80% (No Condensation) | Storage Humidity: | 10% to 90% (Non-condensing) |
Mounting Options: | 400x1300mm VESA;Wall mount bracket | Surface Treatment: | AG ( MR Optional) |
Certificates： | RoHS,FCC,CE,CB,HDMI Testing | Warranty: | 1 Year |
