Product Overview
GreenTouch's 3E series of compact sheet metal capacitive industrial displays(10.1"-23.8") are designed to provide reliable and accurate human-machine interaction in confined spaces and complex environments. The 3E series is designed with the specific environmental requirements of various industries in mind, ensuring24/7 operation and meeting high-frequency touch and dust/explosion-proof requirements.
Product Features
● Smart and sensitive with up to 10 points PCAP touch
● Precision compact frame, simple and easy to integrate
● Optically bonded Touch Panel to LCD Panel
● Uses original A+ industrial panels, ensuring a long lifespan
● Motherboard optional: J1900,Intel Core I3/I5/I7,RK356(Optional)
● Customizable: Size,Logo,Color,Casing,Packaging
● Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06
Product Performance
Born to withstand harsh environments. The 3E back shell uses a sheet metal structure, and the front panel achieves an IP65 protection rating, impervious to dust and water splashes; it has passed the IK08 explosion-proof test, resisting high-intensity mechanical impacts. Combined with professional EMC anti-interference design, it ensures stable signal and drift-free touch control even in strong electromagnetic fields such as those from inverters and high-power equipment, providing robust protection for uninterrupted and reliable 24/7 operation.
Product Installation
Flexible 3E mounting options: Supports recessed mounting; four-sided snap-fit design allows for seamless rack integration, providing stability and shock resistance;75x100mm VESA mounting holes on the rear facilitate wall-mounting or desktop bracket installation. Quickly adaptable to various industries to meet your industrial needs.
Windows/Android Optional
The 3E series panel mount touch panel PC offer a choice of X86 or Android motherboards. The Windows Touch Panel PC feature a range of I/O interfaces to support various third-party peripherals. Standard interfaces include two RS-232 ports, four USB ports, a Gigabit Ethernet port, 3.5mm audio input/output jacks, and both VGA and HDMI video outputs (facilitating connection to a second, customer-facing screen).
The Android Touch Panel PC are equipped with multiple interfaces to support various third-party peripherals; standard interfaces include two standard USB ports, one RS-232 serial port, a Gigabit Ethernet port, 3.5mm stereo audio output, a TF card slot, a lockable SIM card slot, and an HDMI video output (facilitating connection to a second, customer-facing display).

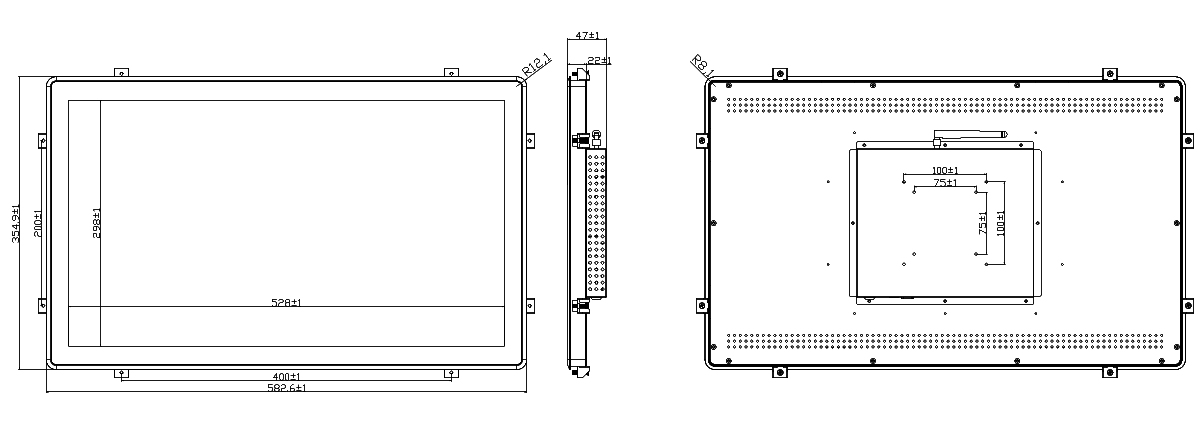

Drawing Show
GT-TC2383E-Model
Application Scenario
Product Parameters
| Product Name: | Panel Mount Touch Panel PC(3E series) | Model: | GT-TC2383E |
| Regular Sizes: | 10.1",10.4",12.1",13.3",15",15.6",17",18.5",19",21.5",23.6",23.8" | Display Type/Colors: | TFT LCD, LED Backlight,16.7M |
| View Angle (Center): | 10.1"/13.3"/15"(170°/170°);10.4"(160°/160°);12.1"(176°/176°);15.6"/18.5"/21.5"/23.6"/23.8"(178°/178°);17"/19"(170°/160°) | ||
| Case/Frame Color: | Black | Touch Technology: | projected capacitive 10 Points |
| Touch chip: | weida | Touch Supply Voltage: | 5V |
| Touch Interface: | USB | Touch Support System: | Windows,Android,Linux |
| Operating Temp: | -20°C to 70°C(10.1"/12.1");-10°C to 60°C (10.4"); -10°C to 70°C (15"); 0°C to 50°C(13.3"~23.8") | Storage Temp： | -30°C to 80°C (10.1"/12.1"/15"); -20°C to 70°C (10.4");-20°C to 60°C (13.3"~/23.8") |
| Operating Humidity: | 20% to 80% (No Condensation) | Storage Humidity: | 10% to 90% (Non-condensing) |
| Mounting Options: | 75x100mm VESA; Fixed buckle | Performance: | IP65(front)/IK06(front) |
| X86 Motherboard: | Android Motherboard: | ||
| CPU: | Intel Core i3/i5/i7,Intel J1900 | CPU: | Rockchip RK3566/3568/3588 |
| RAM: | 2GB,4GB,8GB Optional | RAM: | 2GB,4GB,8GB Optional |
| SSD: | 32G,64G,128G,256G,512G Optional | SSD: | 32G,64G |
| HDD: | Optional addition of 500G,1T HDD | Network support: | 3G,4G,5G,Ethernet,WiFi/Bluetooth 4.0 |
| WIFI: | Built-in 802.11b /g/n wireless | WIFI: | Built-in 802.11b /g/n wireless |
| Interface: | RS-232*2,DC 12V IN,HDMI,VGA,USB*4,LAN,AUDIO I/O | Interface: | USB*2,TF,PHONE,LAN,HDMI,DC 12V IN |
| Supported OS: | Windows OS(suggest Windows7 up );Linux ;Android x86 | Supported OS: | Android |
| Certificates: | RoHS,FCC,CE,CB,HDMI Testing | Warranty: | 1-3 Year |
