      15.6" Panel Mount Touch Monitor 3D Series

    • Category：
      Embedded(3D)
    • Model：
    • Brand：
      GreenTouch
    • Browse number：
      22
    • Release time：
      2026-05-12 14:38:31
      • E-mail：ifo@greentouch.com.cn INQUIRY

    Product Overview
    GreenTouch's self-developed fully enclosed aluminum alloy industrial display(touch display/monitor/touch monitor/touch screen/touchscreen/LCD monitor) 3D (10.1”-23.8”)  series is a professional display device designed to adapt to various harsh industrial environments. Its core advantages lie in high protection, durability, and adaptability, with core parameters meeting industrial-grade IP65 protection certification and 24/7 all-weather operation standards.         3D触显详情13.3-1.jpg

       3D触显详情13.3-2.jpg     Product Features
    ● Fully sealed housing,durable construction
    ● Optically bonded Touch Panel to LCD Panel
    ● Uses original A+ industrial panels,ensuring a long lifespan
    ● 10-point capacitive touch,touch sensitivity
    ● Surface treatment: AG,AR,AF,Antibacterial(Optional)
    ● Customizable: Size,Logo,Color,Casing,Packaging
    ● Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

    Product Performance
    In harsh industrial environments, stability and durability equate to efficiency. Our 3D industrial touch displays boast an IP65 waterproof and dustproof rating, impervious to dust, water splashes, and oil stains; the front can even be directly sprayed with water for touch. With an IK08 explosion-proof rating, they can withstand 5 joules of impact, effectively preventing damage from human or mechanical collisions. Furthermore, they are EMC anti-interference certified, ensuring accurate touch control and uninterrupted signal even in strong electromagnetic fields such as those from inverters and radio sources. From automated workshops to outdoor terminals, reliable 24/7 operation safeguards your smart manufacturing.        3D触显详情13.3-3.jpg

       3D触显详情13.3-5.jpg     Product Installation

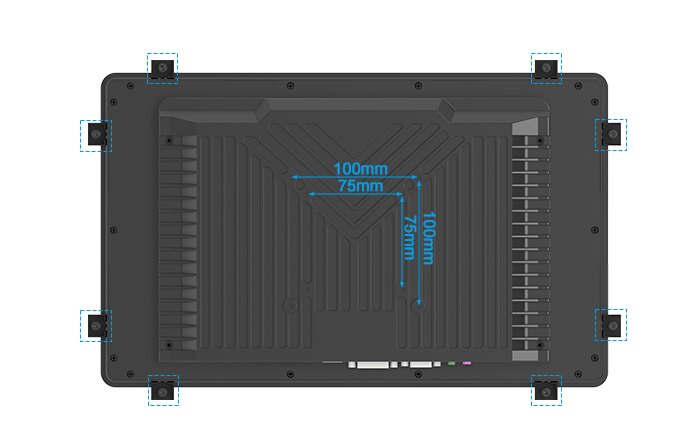

    Flexible 3D installation options: Supports embedded mounting with side-mounted clips for a seamless fit within the rack,providing stability and shock resistance; 75x100mm VESA mounting holes on the back allow for easy wall mounting or desktop bracket installation.Quickly adaptable to various industries,meeting your industrial needs.

    Customization
    1.Screen customization
    →Surface treatment (AG/AF/AR), size, brightness (300-1000cd/m²) customization
    2.Appearance customization
    →LOGO, interface (VGA, HDMI, DVI, DP, USB, etc.), Packaging and Casing other appearance customization
    3.Special environment customization
    → Installation method, high and low temperature environment, interference environment, other environment customization        3D触显详情5.jpg

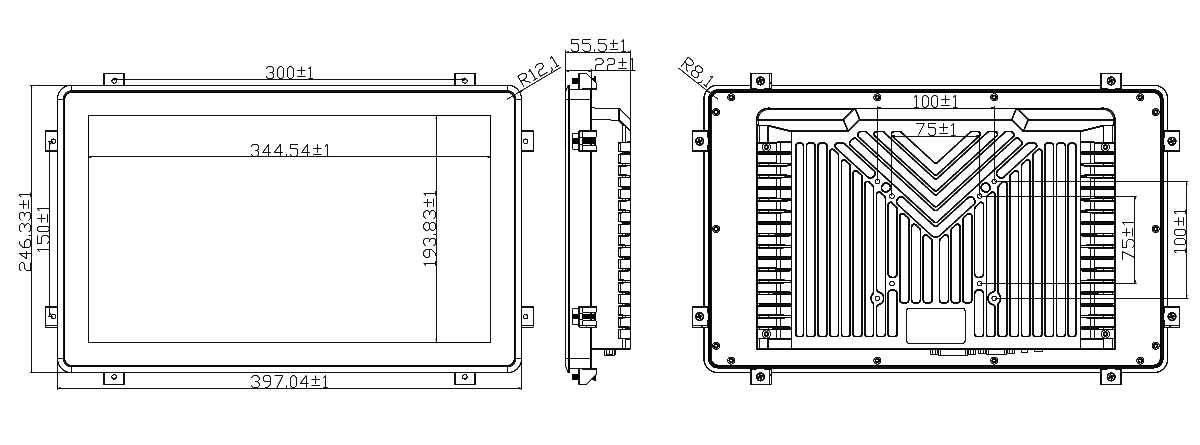

    Drawing Show

    GT-TM1563D-Model


    About Display Ports


    1.VGA+DVA+HDMI                                                                               2.VGA+HDMI+DP

    Display Ports.jpg

    Application Scenario


    Product Parameters

    Product Name：

    Panel Mount Touch Monitor(3D series)

    Type:

    GT-TM1563D

    Regular Sizes：

    10.1",10.4",12.1",13.3",15",15.6",17",18.5",19",21.5",23.6",23.8"

    Display Type/Colors:

    Active Matrix TFT LCD, LED Backlight,16.7M

    View Angle (Center):

    10.1"/13.3"/15"(170°/170°);10.4"(160°/160°);12.1"(176°/176°);15.6"/18.5"/21.5"/23.6"/23.8"(178°/178°);17"/19"(170°/160°)

    Case/Frame Color:

    Black

    Input Video Formats:

    VGA,DVI,HDMI,DP (Optional )

    Touch Technology:

    projected capacitive

    Touch Points：

    10 Points

    Touch chip:

    weida

    Touch Supply Voltage:

    5V

    Touch Interface：

    USB

    Touch Support System:

    Windows,Android,Linux

    Power:

    External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3 mm);

    Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm)

    Operating Temperature:

    -20°C to 70°C(10.1"/12.1"/21.5");-10°C to 60°C (10.4"); -10°C to 70°C (15"); 0°C to 50°C(13.3"/15.6"/17"/18.5"/19" /21.5"/ 23.6"/ 23.8")

    Storage Temperature：

    -30°C to 80°C (10.1"/12.1"/15"); -20°C to 70°C (10.4");-20°C to 60°C (13.3"/15.6"/17"/ 18.5"/19"/ 21.5"/23.6"/23.8")

    Operating Humidity:

    20% to 80% (No Condensation)

    Storage Humidity:

    10% to 90% (Non-condensing)

    Mounting Options:

    75x100mm VESA;Fixed buckle

    Performance:

    IP65(front)/IK06(front)

    Certificates：

    RoHS,FCC,CE,CB,HDMI Testing

    Warranty:

    1 Year
