Product Overview

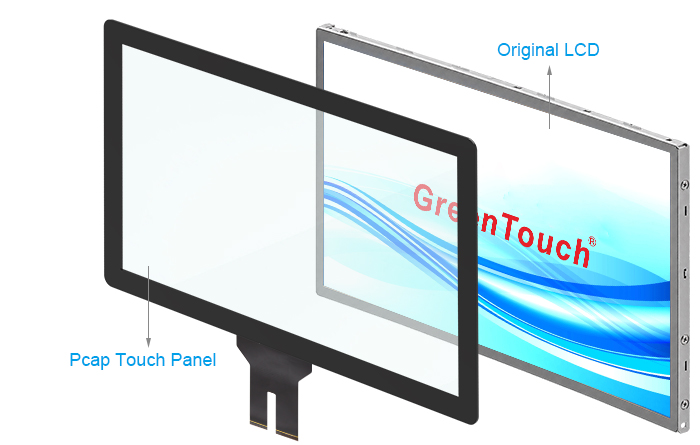

GreenTouch Open Frame Capacitive Touch Monitor 5A Series combines a high-performance projected capacitive touchscreen with an industrial-grade LCD panel in a compact open-frame structure, providing a reliable embedded touch display solution for industrial and commercial equipment manufacturers. Its flexible mounting design make integration into kiosks, control cabinets, HMI systems, and customized equipment easier and more efficient.The 5A Series features a responsive 10-point capacitive touchscreen, delivering smooth, accurate, and stable multi-touch interaction. Equipped with a carefully selected industrial LCD panel, the 15.6-inch display provides clear image quality, consistent color performance, and wide viewing angles, ensuring excellent visibility from different operating positions.
Quality And Service
5A touch monitor 18.5" adopt projected capacitive 10-point touch.From product design to production,to software development and product testing,all the processes are under the responsibility of GreenTouch, pursuing the perfect operation of the product and good service.5A touch display is stable and reliable,with excellent image clarity, resolution, transparency,good accuracy and vivid images,which can instantly capture and attract attention.5A touch monitor have passed the CE,FCC,CB,RoHS, HDMI certifications.
Product Features

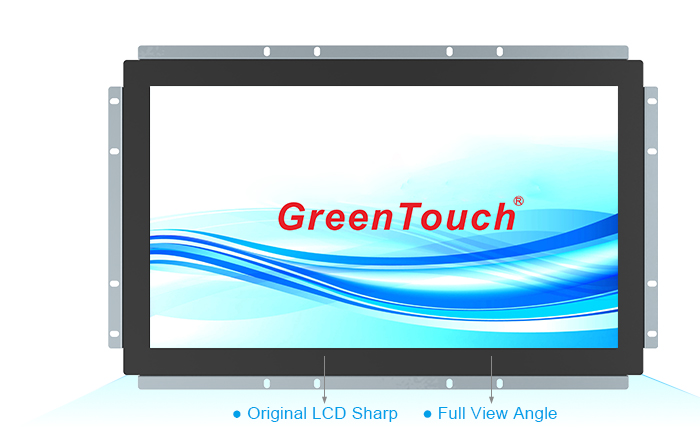

♦ Pure flat front panel,adopt original a-Si TFT-LCD （Sharp LQ156T3LW05）.
♦ Full view angle and brightness 400 cd/m²，operating temperature -20℃~70℃
ds
♦ Stable and sensitive,no jumping points,no break points,no blind spots.
♦ Industrial metal front shell and black frame,durable and reliable.
♦ Good sealing performance,passed EMC anti-interference testing.
♦ Running 24 hours a day,support OEM/ODM services.

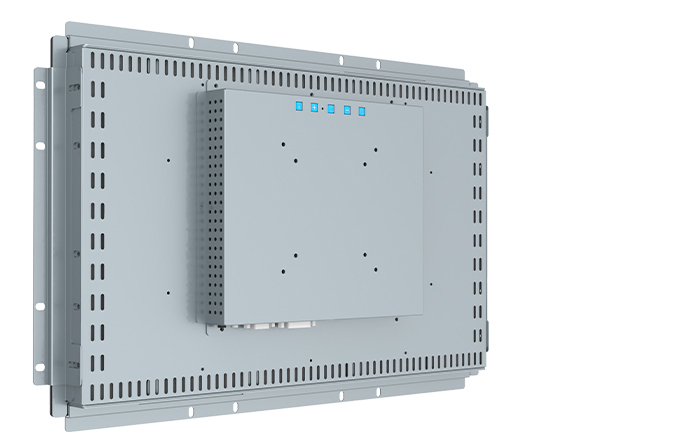

Back Shell And Installation
As shown left picture,5A touch monitor is equipped with external bracket for embedded installation.The back shell is equipped with a standard VESA (100mm x 75mm) mounting hole for desktop or wall-mounted installation.The installation of these two methods is simple and easy to operate,allowing you to flexibly install in different scenarios.
Product Customization
GreenTouch provides a wide range of customization options to meet your requirements,including product size,customer logo,LCD panel brightness 300-1000nits, glass cover surface treatment AG, AF, AR ,display ports（VGA,DVI,HDMI, DP,USB or more).The power plug is selected according to different styles of each country.

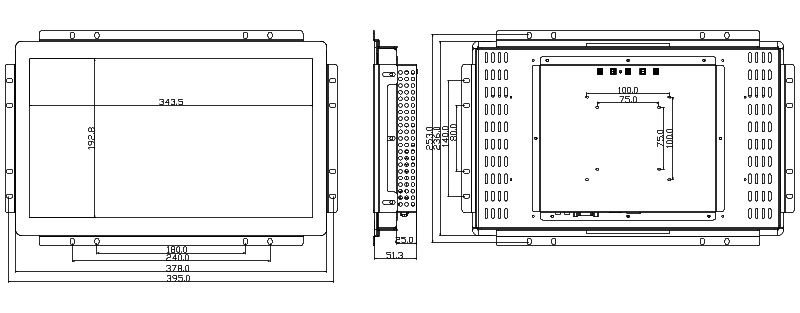

Drawing Show
GT-TM1565A-CTW
Product Packaging
Product Application
Product Parameters
| Product Name | Capacitive Touch Monitor |
| Size | 15.6 Inch |
| Type | GT-TM1565A-CTW |
| Panel | a-Si TFT-LCD |
| Optimal Viewing Angle | Full View Angle |
| Brightness | 400 cd/m² |
| Active Area Dimensions | 344.232mm(H) x 193.536mm(V) |
| Display Size | 398mm(W) x248mm(H),Thickness: 46.5 mm |
| Resolution(pixel) | 1366 x 768 @ 60Hz |
| Display Colors | 16.7M |
| Response Time (standard) | 35ms |
| View Angle(from center) | L/R:85/85;U/D:85/85 (Typ.)(CR≥10) |
| Contrast Ratio (standard) | 1000: 1(Typ.) |
| Input Video Formats | Analog VGA and digital DVI, HDMI(DP Optional) |
| Sweep Frequency | 31.5~60.2kHz; vertical: 56.3~75 Hz |
| Touch Technology | Projected capacitive |
| Touch Chip | weida、eeti、ilitek |
| Touch points | 1-10 |
| Touch Supply Voltage | 5V |
| Touch Interface | USB |
| Touch Support System | Windows，Android，linux |
| Power | External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS(for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (±0.3 mm); Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) |
| Power Consumption (standard) | Display only: 13.5W(Typ. |
| Temperature | Operating: -20℃~70℃; Storage: -25℃-70℃ |
| Humidity | Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non condensing) |
| MTBF | 15,000 hours |
| Weight | (approx.) Net weight: 3.8 kg(Typ.); Shipping: 5.6 kg (reference |
| Warranty | 1 year |
| OSD | Digital OSD |
| User Controls | OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, phase, call default, language (English, German,Spanish, Japanese,French); OSD Fail / Active: Power, OSD menu |
| OSD Remote Accessories | Optional controls (front):Menu, Up, Down, Select, Power |
| Mounting Options | 100mm or 75mm VESA mounting,open bracket mounting |
| Water and dust protection/Explosion-proof | IP65(front)/IK08(front) |
| Surface Treatment | AG AR AF（Customizable） |
| Agency Approvals | FCC, CE, CB,China RoHS CQC |
| Other Sizes | 7",8",9.7",10.1",12.1",13.3",14",15",15.6",17",18.5",19",21.5",22",23.6",23.8",27",32",43",50",55" |
