Product Overview GreenTouch 3A Series closed frame touch monitors integrate a high-performance 10-point capacitive touchscreen with original industrial LCD panel, providing a reliable solution for high-resolution display and smooth multi-touch interaction. Designed for industrial and commercial applications, the 3A Series features responsive touch performance, durable front glass, stable operation, and excellent image quality. With full or wide viewing angles, the display maintains clear images, accurate colors, and good visibility from different directions. Its robust closed-frame structure also supports easy installation and long-term operation. GreenTouch 3A Series touch monitors are widely used in industrial automation, rail transportation, education, medical equipment, self-service terminals, retail systems, and smart manufacturing. |
|

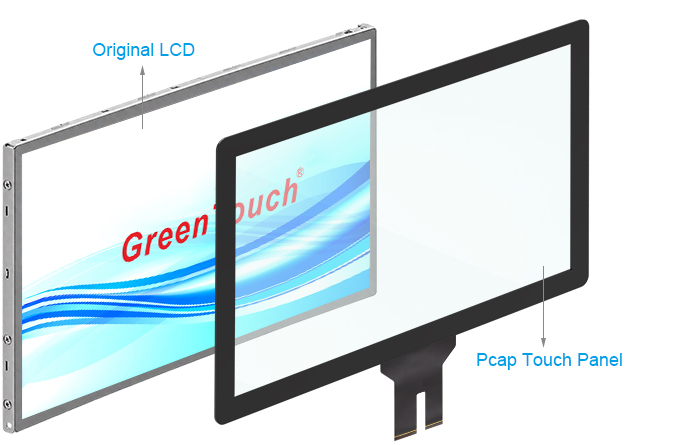

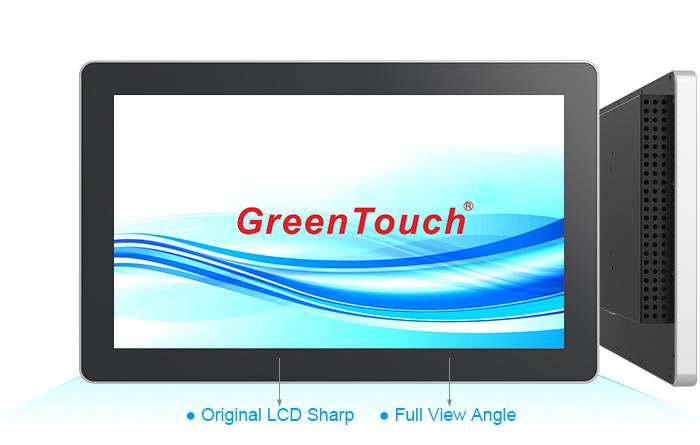

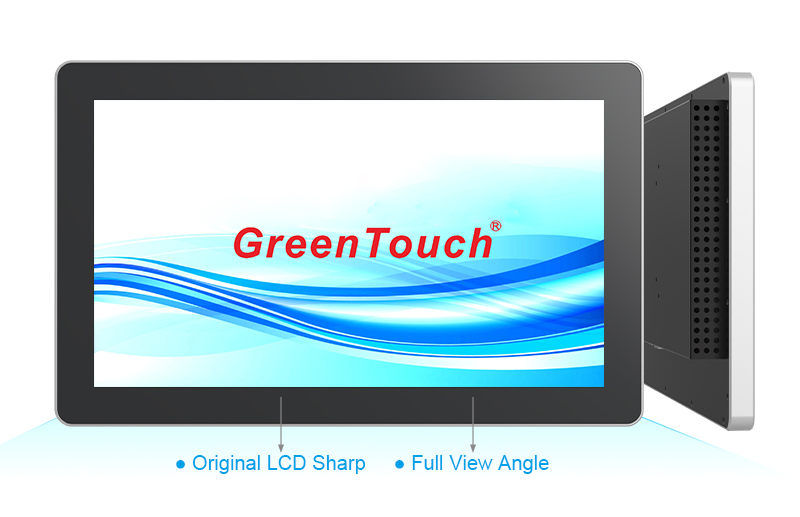

| Product Features 1.Pure flat front panel,adopt original a-Si TFT-LCD(Sharp LQ156T3LW05) |
PRODUCT USAGE The front panel of Green Touch 3A series touch monitor adopts IK06 explosion-proof tempered glass, which can effectively prevent dust and water droplets from intruding into the inside of the machine through the frame sticking process, and the protection level reaches IP65 level, which meets your industrial requirements. |  |

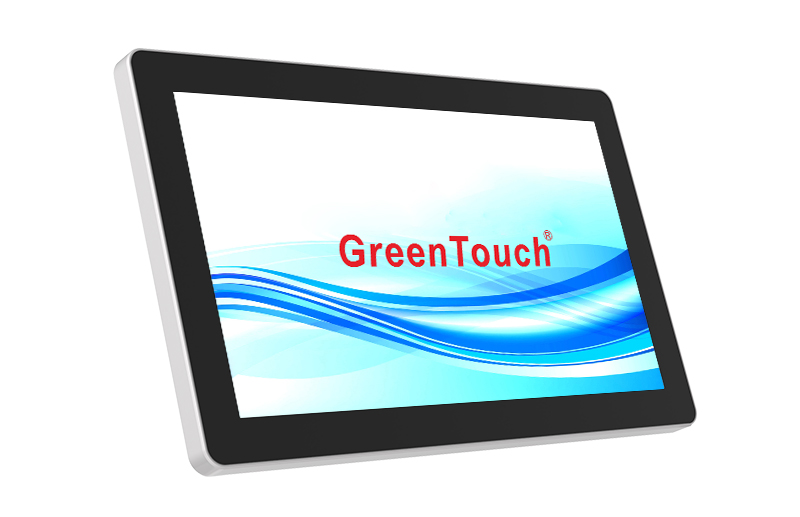

Product appearance This model adopts an industrial aesthetic appearance design, the frame is made of aluminum alloy, and the rear shell is made of aluminum alloy baking paint. |
|
| Customization ① Product size ② Customer Logo ③ LCD brightness(300-800 cd/m²) ④ Glass of surface treatment AG,AF,AR ⑤ Display ports（ VGA,DVI,HDMI,DP,USB or more） |

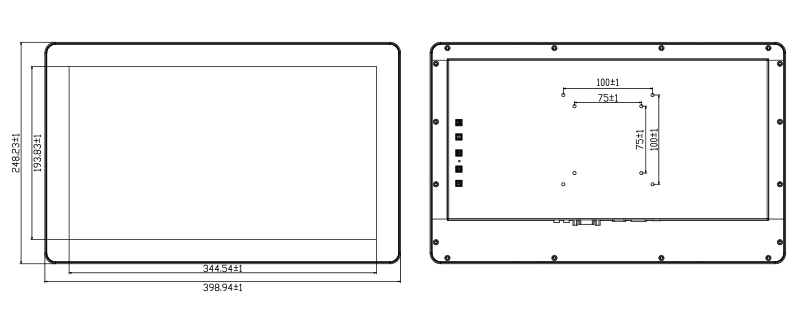

Drawing Show
GT-TM1563A-F-CW10U,GT-TM1563A-A-CW10U
Installation

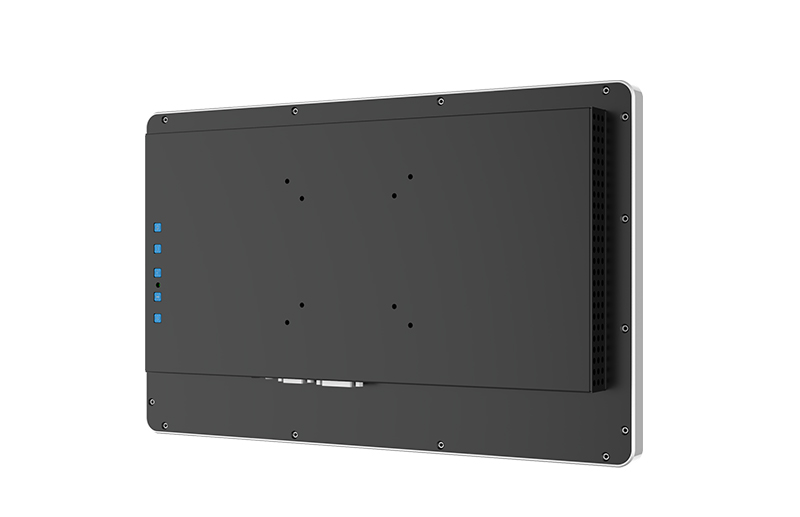

(1) 75mm or 100mm VESA hole in rear case for desktop mounting
(2) 75mm or 100mm VESA hole in rear case for snap-in installation
(3) 75mm or 100mm VESA hole in rear case for wall mount
Application Scenario
Product Parameters
| Product Name | Close Frame Touch Monitor |
| Size | 15.6 Inch |
| Type | GT-TM1563A |
| Panel | a-Si TFT-LCD |
| Optimal Viewing Angle | Full View Angle |
| Brightness | 400 cd/m² |
| Active Area Dimensions | 344.232mm(H) x 193.536mm(V) |
| Display Size | 398.94mm(W) x248.23mm(H),Thickness: 42 mm |
| Resolution(pixel) | 1366 x 768 @ 60Hz |
| Display Colors | 16.7M |
| Response Time (standard) | 35ms |
| View Angle(from center) | L/R:85/85;U/D:85/85 (Typ.)(CR≥10) |
| Contrast Ratio (standard) | 1000: 1(Typ.) |
| Input Video Formats | Analog VGA and digital DVI, HDMI(DP Optional) |
| Sweep Frequency | 31.5~60.2kHz; vertical: 56.3~75 Hz |
| Touch Technology | Projected capacitive |
| Touch Chip | weida、eeti、ilitek |
| Touch points | 1-10 |
| Touch Supply Voltage | 5V |
| Touch Interface | USB |
| Touch Support System | Windows，Android，linux |
| Power | External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS(for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (±0.3 mm); Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) |
| Power Consumption (standard) | Display only: 13.5W(Typ. |
| Temperature | Operating: -20℃~70℃; Storage: -25℃-70℃ |
| Humidity | Operating: 20% to 80% (no condensation); Storage: 5% to 95% (non condensing) |
| MTBF | 15,000 hours |
| Weight | (approx.) Net weight: 3.8 kg(Typ.); Shipping: 5.6 kg (reference |
| Warranty | 1 year |
| OSD | Digital OSD |
| User Controls | OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, phase, call default, language (English, German,Spanish, Japanese,French); OSD Fail / Active: Power, OSD menu |
| OSD Remote Accessories | Optional controls (front):Menu, Up, Down, Select, Power |
| Mounting Options | 100mm or 75mm VESA mounting |
| Water and dust protection/Explosion-proof | IP65(front)/IK06(front) |
| Surface Treatment | AG AR AF（Customizable） |
| Agency Approvals | FCC, CE, CB,China RoHS CQC |
| Other Sizes | 7",8",9.7",10.1",12.1",13.3",14",15",15.6",17",18.5",19",21.5",22",23.6",23.8",27",32",43",50",55" |
