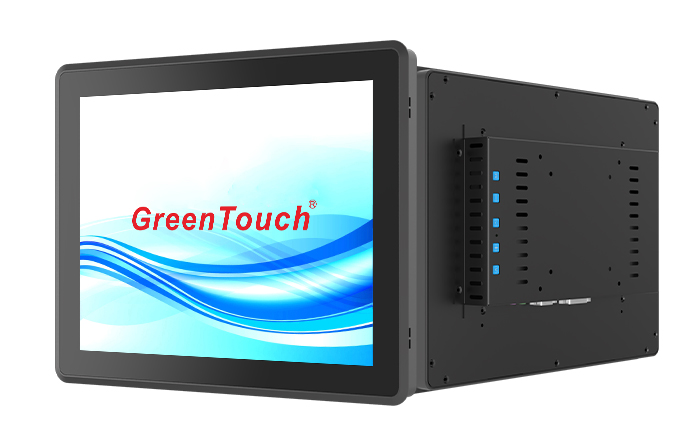

Product Overview
GreenTouch's 3E series of compact sheet metal capacitive industrial displays (10.1"-23.8") are designed to provide reliable and accurate human-machine interaction in confined spaces and complex environments. The 3E series is designed with the specific environmental requirements of various industries in mind, ensuring 24/7 operation and meeting high-frequency touch and dust/explosion-proof requirements.
Product Features

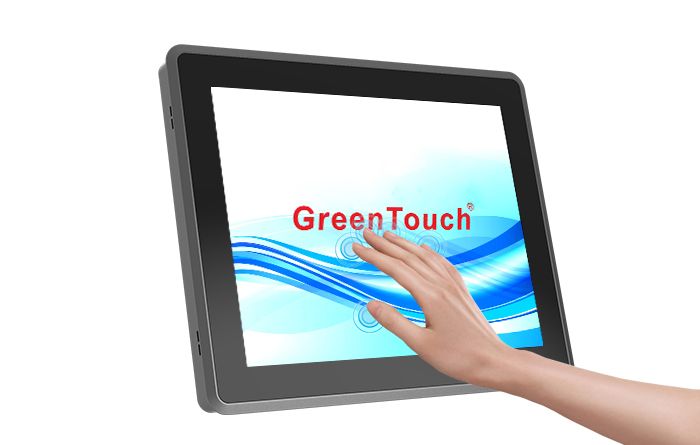

● Smart and sensitive with up to 10 points Pcap touch
● Precision compact frame, simple and easy to integrate
● Optically bonded Touch Panel to LCD Panel
● Uses original A+ industrial panels,ensuring a long lifespan
● Surface treatment: AG,AR,AF,Antibacterial(Optional)
● Customizable: Size,Logo,Color,Casing,Packaging
● Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08
Product Performance

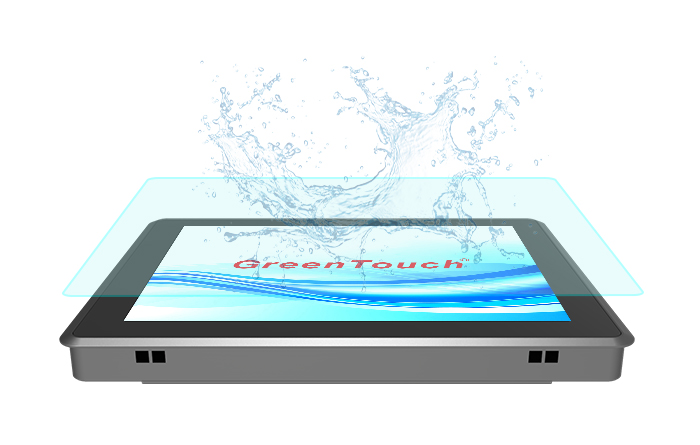

Born to withstand harsh environments.The 3E back shell uses a sheet metal structure,and the front panel achieves an IP65 protection rating,impervious to dust and water splashes;it has passed the IK08 explosion-proof test,resisting high-intensity mechanical impacts.Combined with professional EMC anti-interference design,it ensures stable signal and drift-free touch control even in strong electromagnetic fields such as those from inverters and high-power equipment, providing robust protection for uninterrupted and reliable 24/7 operation.
Product Installation

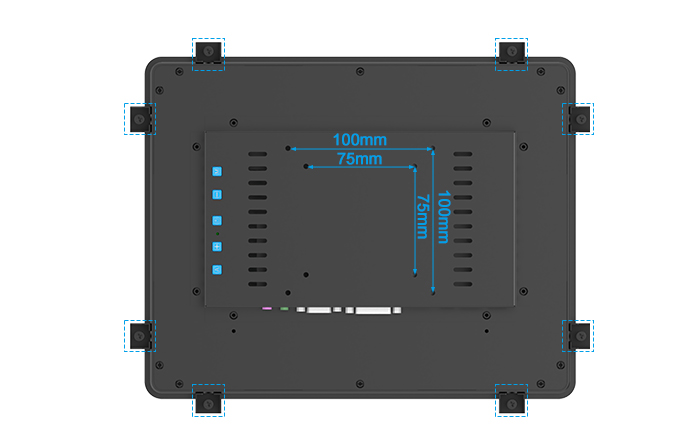

Flexible 3E mounting options: Supports recessed mounting; four-sided snap-fit design allows for seamless rack integration, providing stability and shock resistance; 75x100mm VESA mounting holes on the rear facilitate wall-mounting or desktop bracket installation. Quickly adaptable to various industries to meet your industrial needs.
Customization
1.Screen customization
→Surface treatment (AG/AF/AR), size, brightness (300-1000cd/m²) customization
2.Appearance customization
→LOGO, interface (VGA, HDMI, DVI, DP, USB, etc.), Packaging and Casing other appearance customization
3.Special environment customization
→ Installation method, high and low temperature environment, interference environment, other environment customization

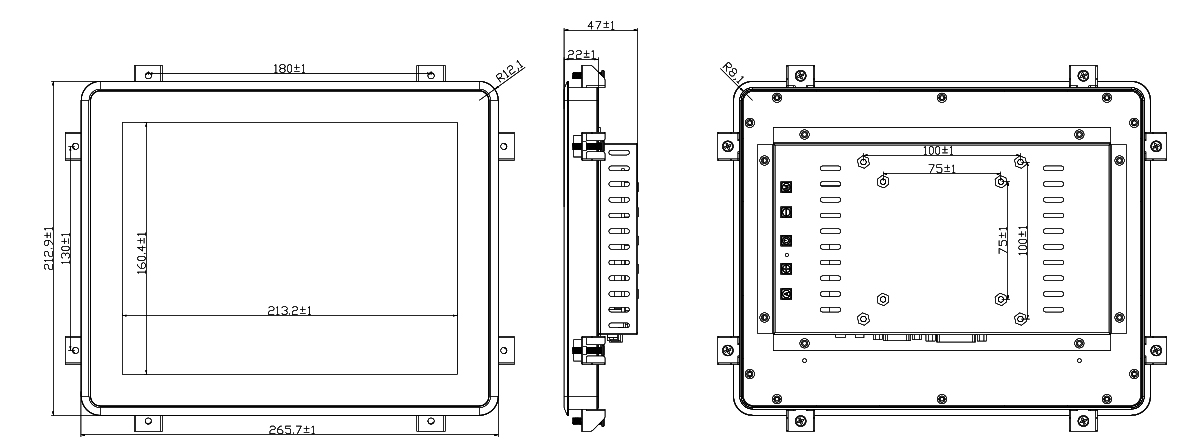

Drawing Show
GT-TM1213E-Model
About Display Ports
1.VGA+DVA+HDMI 2.VGA+HDMI+DP
Application Scenario
Product Parameters
Product Name： | Panel Mount Touch Monitor(3E series) | Type: | GT-TM1213E |
Regular Sizes： | 10.1",10.4",12.1",13.3",15",15.6",17",18.5",19",21.5",23.6",23.8" | Display Type/Colors: | Active Matrix TFT LCD, LED Backlight,16.7M |
View Angle (Center): | 10.1"/13.3"/15"(170°/170°);10.4"(160°/160°);12.1"(176°/176°);15.6"/18.5"/21.5"/23.6"/23.8"(178°/178°);17"/19"(170°/160°) | ||
Case/Frame Color: | Black | Input Video Formats: | VGA,DVI,HDMI,DP (Optional ) |
Touch Technology: | projected capacitive | Touch Points： | 10 Points |
Touch chip: | weida | Touch Supply Voltage: | 5V |
Touch Interface： | USB | Touch Support System: | Windows,Android,Linux |
Power: | External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3 mm); | ||
Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) | |||
Operating Temperature: | -20°C to 70°C(10.1"/12.1"/21.5");-10°C to 60°C (10.4"); -10°C to 70°C (15"); 0°C to 50°C(13.3"/15.6"/17"/18.5"/19" /21.5"/ 23.6"/ 23.8") | Storage Temperature： | -30°C to 80°C (10.1"/12.1"/15"); -20°C to 70°C (10.4");-20°C to 60°C (13.3"/15.6"/17"/ 18.5"/19"/ 21.5"/23.6"/23.8") |
Operating Humidity: | 20% to 80% (No Condensation) | Storage Humidity: | 10% to 90% (Non-condensing) |
Mounting Options: | 75x100mm VESA;Fixed buckle | Performance: | IP65(front)/IK06(front) |
Certificates： | RoHS,FCC,CE,CB,HDMI Testing | Warranty: | 1 Year |
