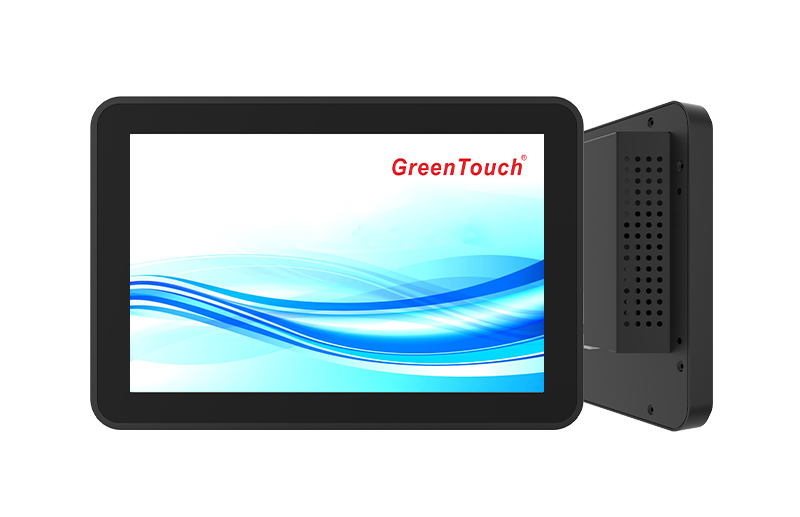

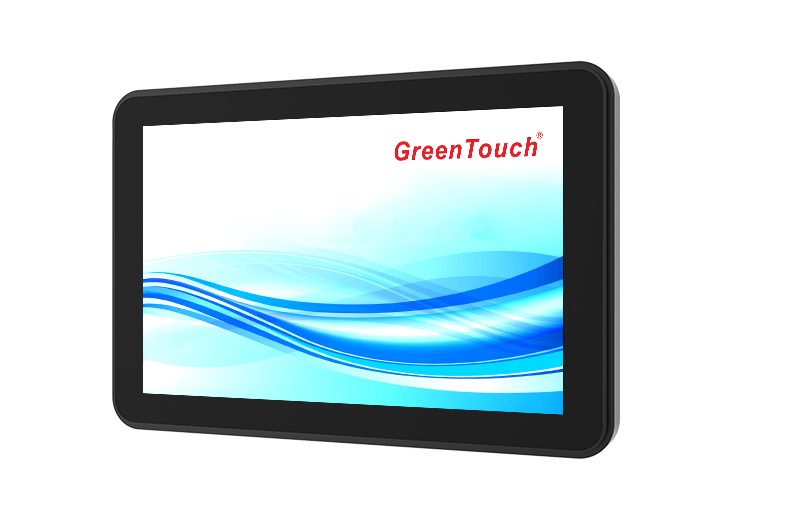

Overview GreenTouch's open frame touch monitor 2C series delivers an perfect solution that is cost-effective for worldwide customers requiring a reliable product.Designed with reliability from the start,they deliver outstanding image clarity and light transmission with stable,drift-free operation for accurate touch responses.2C Precise small frame design will be completely sealed touch screen,so that it has dust-proof,dirt-proof and water-proof function,and make it easier for customers to install in the cabinet.The model designed and built by GreenTouch,has a long life cycle period and supply long-term demands. |
|
| Quality And Service Description 2C touch monitor adopt projected capacitive 10-point touch,sensitive sensing,accurate fixed point,anti-jamming positioning technology,small-strength touch has both sensing,fast and fast response,achieving super positioning and precise tracking.We provide one-year warranty for global customers,from product design to production,to software,to product testing,all by our company's professional team,in pursuit of perfect product operation and peripheral after-sales service.2C touch screen monitor have passed the CE,FCC,CB,RoHS,HDMI certifications. |

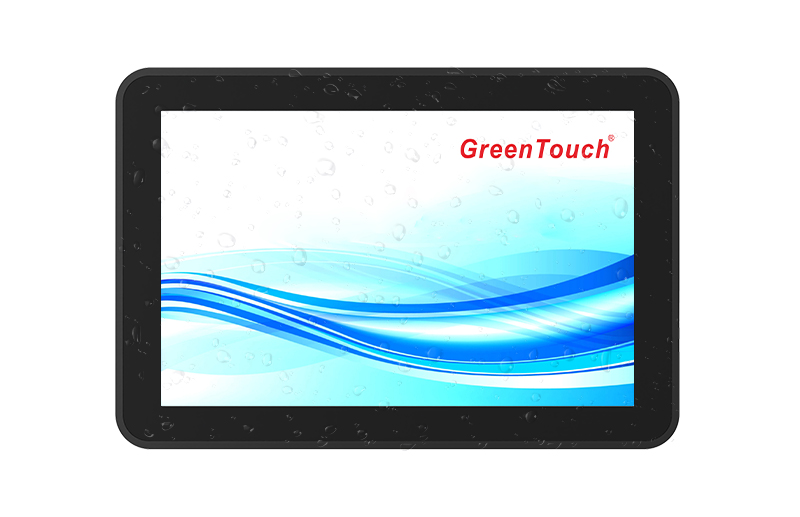

Product Features ♦ Pure flat front panel,adopt A+grade original industrial LED screen. ♦ Front panel is waterproof(IP65),dustproof (IP65) and explosion-proof(IK08). ♦ Industrial plastic front shell,industrial black metal frame,durable and reliable. ♦ Good sealing performance,passed EMC anti-interference testing. ♦ Dense ventilation holes on the back,efficient heat dissipation. ♦ Multi-size 7" to 55" optional,support OEM/ODM services. |  |

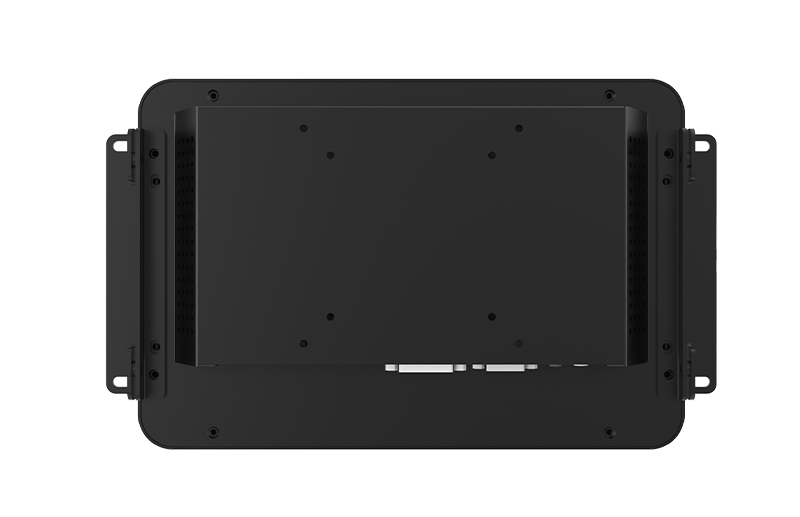

Back Shell And Installation As shown the picture,2C touch monitor 10.1" is equipped with external bracket for embedded installation，it is equipped with a standard Vesa (75mm x 100mm) mounting hole for desktop or wall-mounted installation.The installation of these two methods is simple and easy to operate,allowing you to flexibly install in different scenarios. |
|
| Product Customizable ① Product size ② Customer Logo ③ LCD brightness(300-1000 cd/m²) ④ Glass of surface treatment AG,AF,AR ⑤ Display ports（VGA,DVI,HDMI,DP,USB or more） |

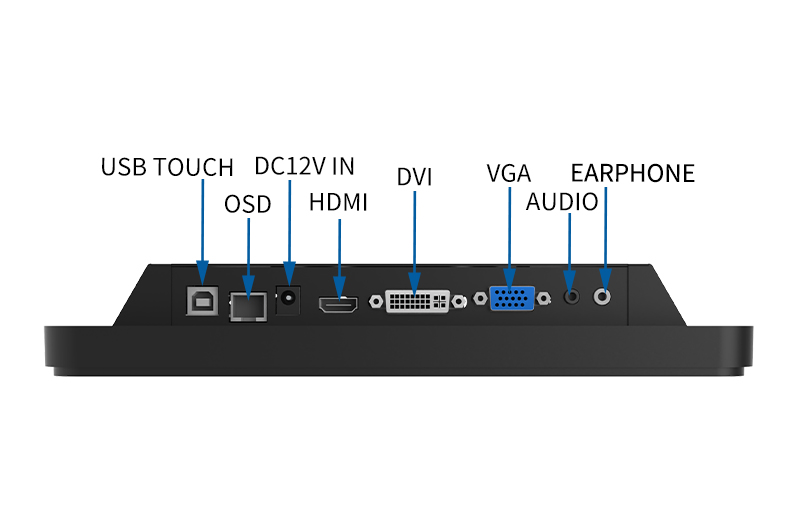

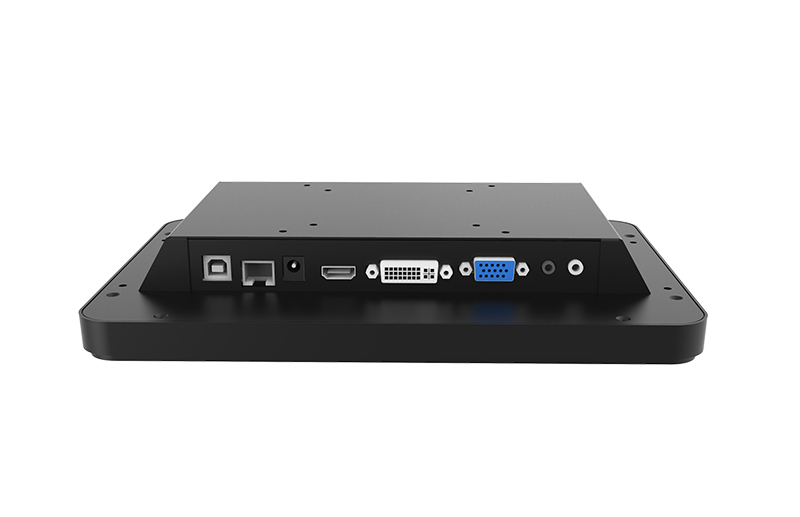

Display Ports Show
VGA+DVI+HDMI,VGA+HDMI+DP(optional)
Drawing Show
GT-TM-1012C-CTW-HD,GT-TM-1012C-CTW-HD-DP
Application Field
Product Parameters
| Product Name： | Open Frame Touch Monitor | Type: | GT-TM-2C |
| Regular Sizes： | 7",8",9.7",10.1",10.4",12.1",13.3",15",15.6",17",18.5",19",21.5",22",23.6",23.8",27",32",43",49",55" | Display Type： | Active Matrix TFT LCD, LED Backlight |
| Display Colors: | 16.7M | View Angle | L/R:85/85;U/D:85/85 (Type) (CR≥10) |
| (From Center): | |||
| Case/ Frame Color:： | Black | Input Video Formats: | VGA,DVI,HDMI,DP (Optional ) |
| Touch Technology: | Projected Capacitive | Touch Points： | 10 Points |
| Touch Chip: | EETI,ILITEK,WEIDA | Touch Supply Voltage: | 5V |
| Touch Interface： | USB | Touch Support System： | Windows，Android，Linux |
| Power: | External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS，External DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS，(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge Depth: 8.0 mm (±0.3 mm); | ||
| Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm); | |||
| Operating Temperature： | -20°C to 70°C | Storage Temperature： | –20°C to 60°C |
| Operating Humidity： | 20% to 80% (No Condensation) | Storage Humidity： | 10% to 90% (Non-condensing) |
| Mounting Options: | 100mm or 75mm VESA Mounting,Open Bracket Mounting | Performance: | IP65(Front)/IK08(Front) |
| Certificates： | UL(power supply), FCC, CE, CB,HDMI ATC Testing | Warranty： | 1 Year |
