Product Overview
GreenTouch conference whiteboard is a smart conference device.It integrates many technologies such as high-definition display,human-computer interaction,multimedia information processing and network transmission,making it easy to write on the conference machine.Annotation,synchronous interaction,multimedia,remote video conferencing,etc.,greatly improve communication efficiency in applications such as conferences,presentations,industry command,deployment,etc.,and are the preferred solutions for office,teaching,and graphic interactive presentations.
Product Description
1)Multifunctional integration,time-saving and labor-saving,efficient office,let you experience smart meeting.
2)Integrates the functions of computer,large-screen TV,audio,screen,projection, whiteboard and advertising machine set-top box to simplify the conference.

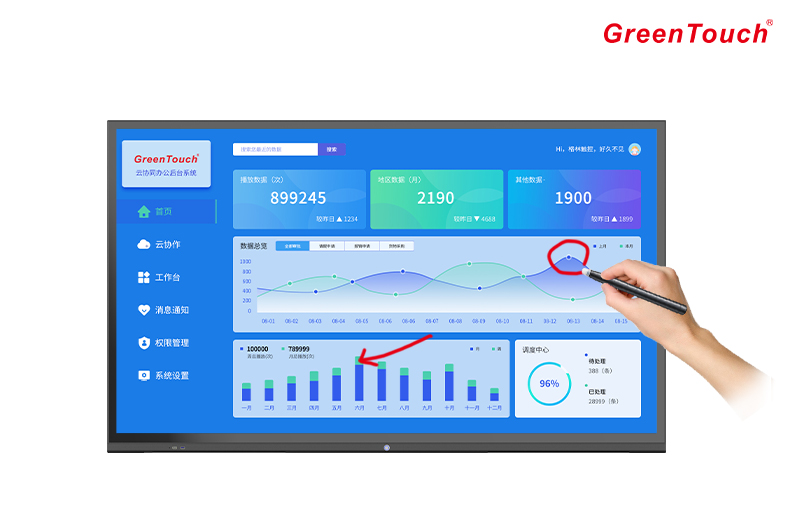

3)Smart whiteboard,experience smooth and delicate writing,capacitive 10-touch panel,0.04s quick response,1.0mm high-precision writing can quickly write annotations, erase and other operations.
4)Support PC/Android/Apple multi-device one-key screen projection,support reverse control of large screens,and support four-party screen projection at the same time, making the operation more flexible.
5)Video conferencing,remote assistance to break space restrictions,remote screen projection,writing synchronization,screen sharing to complete every meeting decision anytime,anywhere.
Product Features
◇ Smart Whiteboard ±1mm for fine writing
◇ 4K picture quality, ultra-clear display
◇ Stable wireless projection
◇ Multiple presentations:Word,Excel,PDF,PPT
◇ Sensitive capacitive 10-point Touch Screen
◇ Conference dual systems
◇ Ultra-thin body,extremely narrow side 30mm
◇ Diverse applications,effective office
◇ Fully fit design,one-piece molding
◇ Hard core configuration
Appearance Description
① Aluminum alloy frame,sandblasted and anodized on the surface,iron case back cover,active heat dissipation;
② 4mm physical toughened anti-riot glass to enhance the visual effect and enhance the touch experience;
③ Use international standard OPS slot,integrated plug-in design,easy to upgrade and maintain,there is no visible connection line of computer module outside,and the body is beautiful;
④ Speaker output front,sidebar gesture menu, front button one-key start,can open and close the screen and the host at the same time,the operation is simple and convenient.
Screen And Host Configuration
4K (3840*2160) picture quality,ultra-high-definition premium original screen,delicate display,true reproduction of every detail.The tempered glass and the screen are fully fitted design,glass hardness is 7H,so the screen can be scratched,writing as you want,and using it more at ease. Hard core configuration,Motherboard: i5 4200U, optional i3/i7,Main chipset:Haswell-U,Broadwell-U high-speed chipset,CPU: CoreB series, RAM: DDR_8G,Storage:SSD 128G,enjoy dual system experience.Support optional OPS computer module to achieve dual systems,freely switch to use Android 8.0 and Windows 10,compatible with more software applications.OPS configuration is flexible,optional OPS computer module,Win 7/Win 10 plug and play,can be upgraded or customized according to needs.

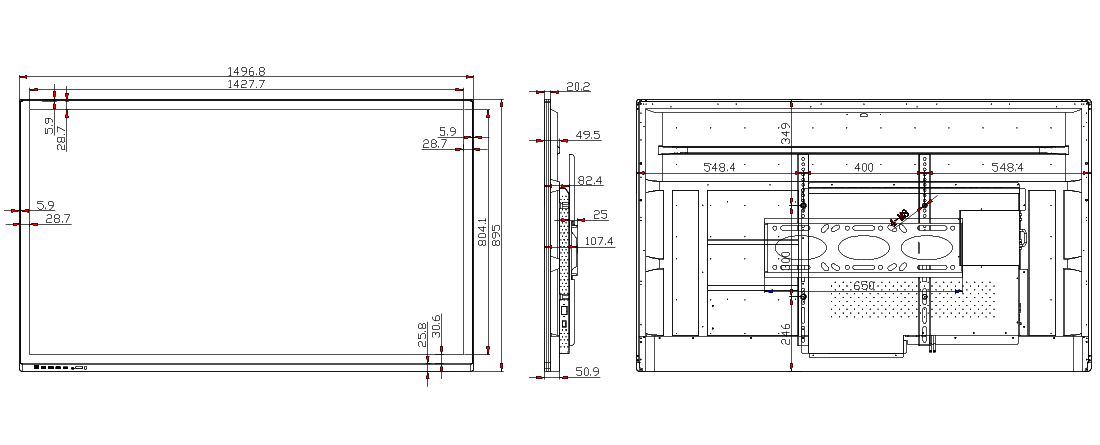

Drawing Show
TC-650CMH-PCAP
Installation

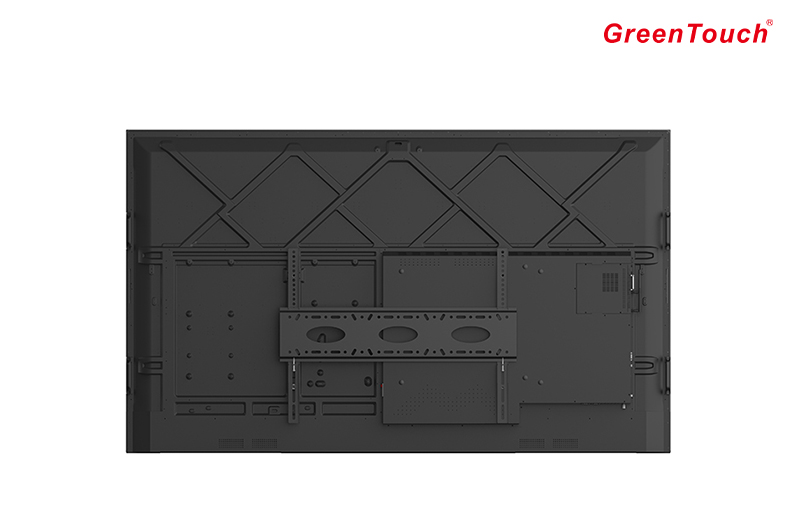

(1) Wall-mounted installation (standard configuration bracket)

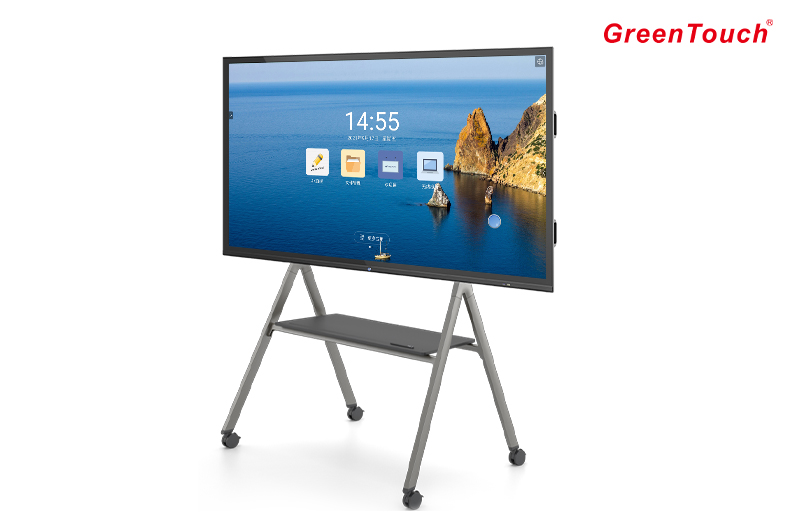

(2) Mobile bracket installation (buy the bracket yourself)
Application Scenario
Product Parameters
Product Name: | Conference All-in-one Machine Whiteboard | Type: | TC-CMH-PCAP |
Regular Sizes: | 65",75",85" | Shell material: | Aluminum alloy frame,black |
Screen type: | Active matrix TFT LCD | Resolution: | 3840 x 2160 @ 60Hz |
Brightness (typical): | 350cd/㎡ | Contrast ratio: | 1400:1 |
Colors: | 8 bit/16.7 Million | Viewing angle: | 178°(H)/178°(V) |
Touch type: | Capacitive,10 Points Touch | Touch drive mode: | HID free drive |
Touch screen glass: | 4MM tempered glass | Touch screen sensing method: | Finger pad or capacitive pen |
Touch screen positioning resolution: | 4096X4096 | Touch system communication port: | USB 2.0 |
Brightness (typical): | 350cd/㎡ | Contrast ratio: | 1400:1 |
Detection function and calibration: | With software automatic detection function | Viewing angle: | 178°(H)/178°(V) |
Touch accuracy: | ≦±1mm | Operating system: | Support Win 7/8/10; Linux; android |
Service life: | Theory unlimited | Anti-external light test: | Full angle resistance to ambient light |
Windows system | Android system | ||
Motherboard: | Core I5 4200U | Processor: | MSD848(8386) |
RAM: | DDR_8G | RAM: | DDR_3G |
Storage: | SSD:128G | Storage: | SSD:32G |
Network card: | Integrated 10/100/1000M bps Ethernet | Network card: | Ethernet, WiFi, 4G network |
WIFI: | Scalable2.4G/5G,150/300Mbps | speaker: | 2 |

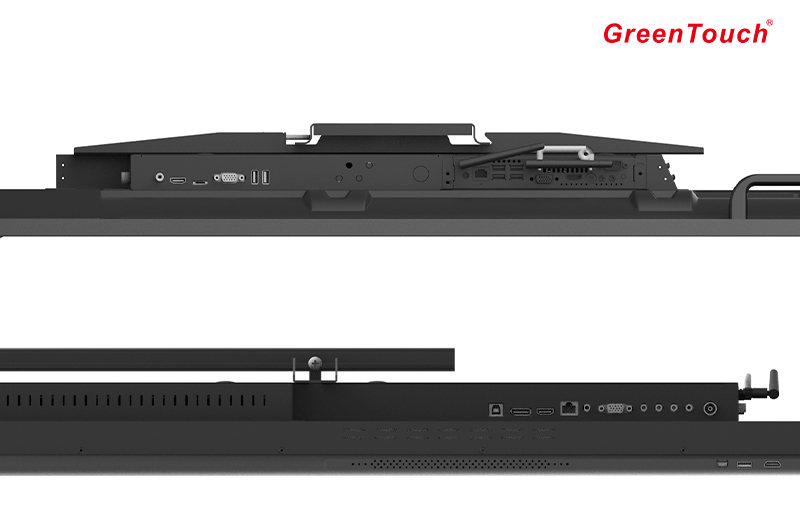

Interface: | USB 3.0*2,USB 2.0*2,EARPHONE,MIC,VGA output,HDMI | Interface: | RJ45,HDMI*2,TOUVH USB,VGA,AUDIO IN YPBPR,AV,TV,SPDIF,EARPHONE |
Operation Temperature: | -10° C -55° C | Storage Temperature: | -20° C~ 60° C |
Humidity: | 10%~90% RH, Noncondensing | Voltage range: | AC 110~240V-50/60HZ |
